Φ52mm Aerosol Can Cone and Dome

Product Basics

Q: What exactly is this product?

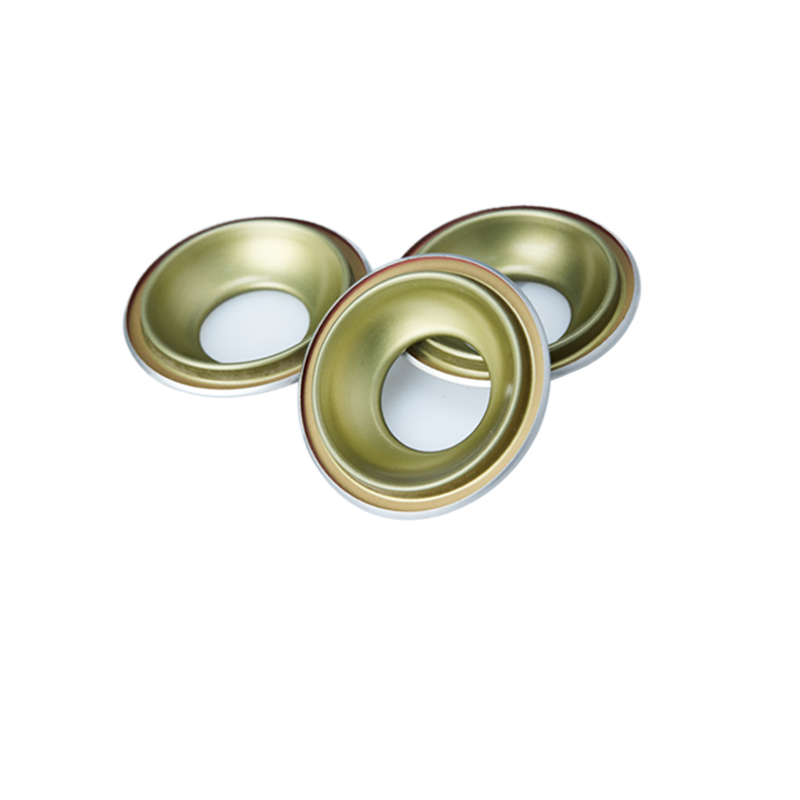

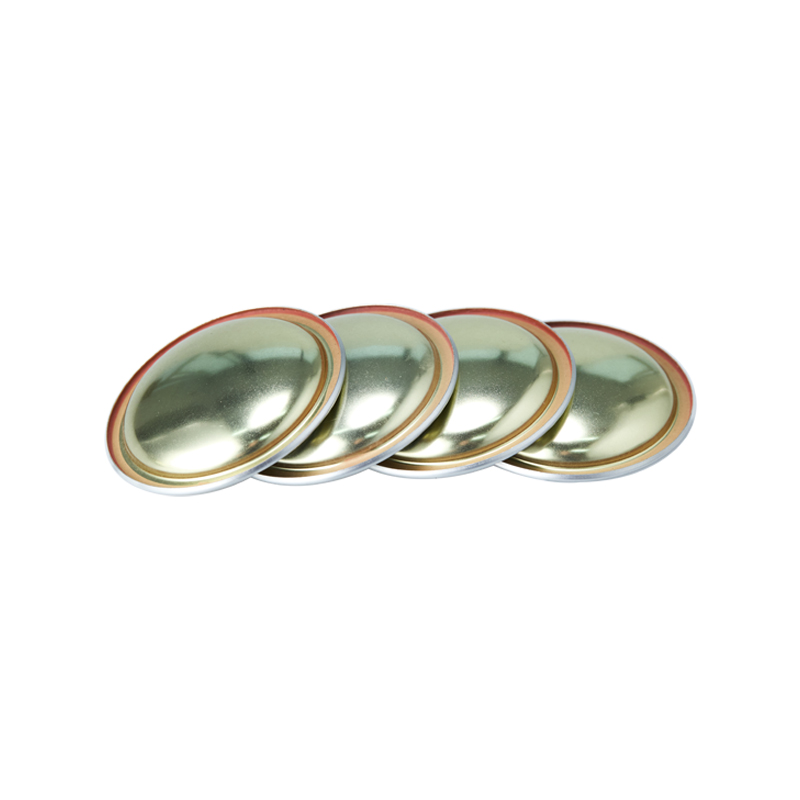

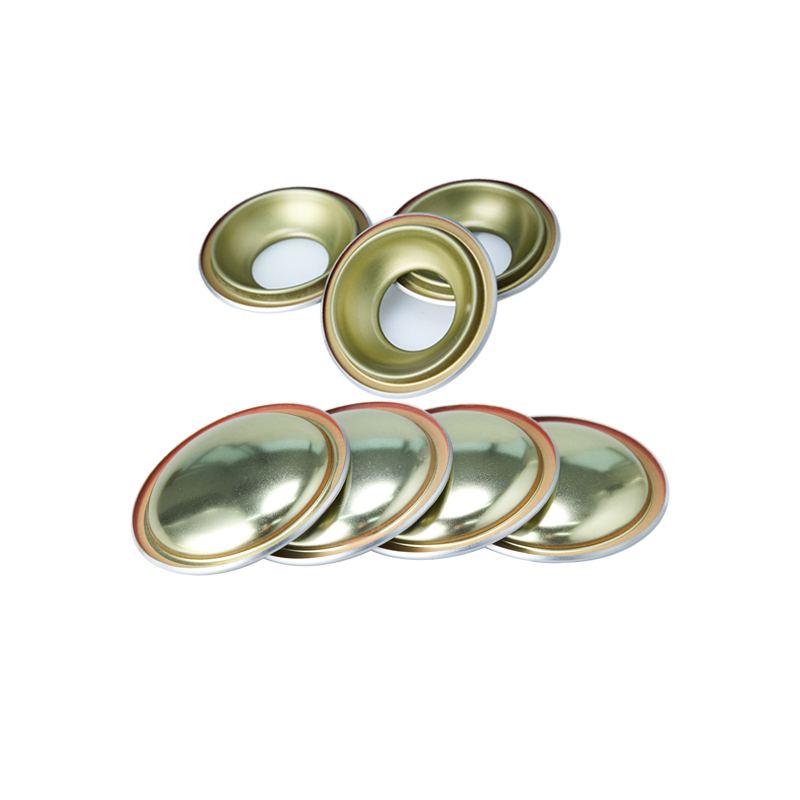

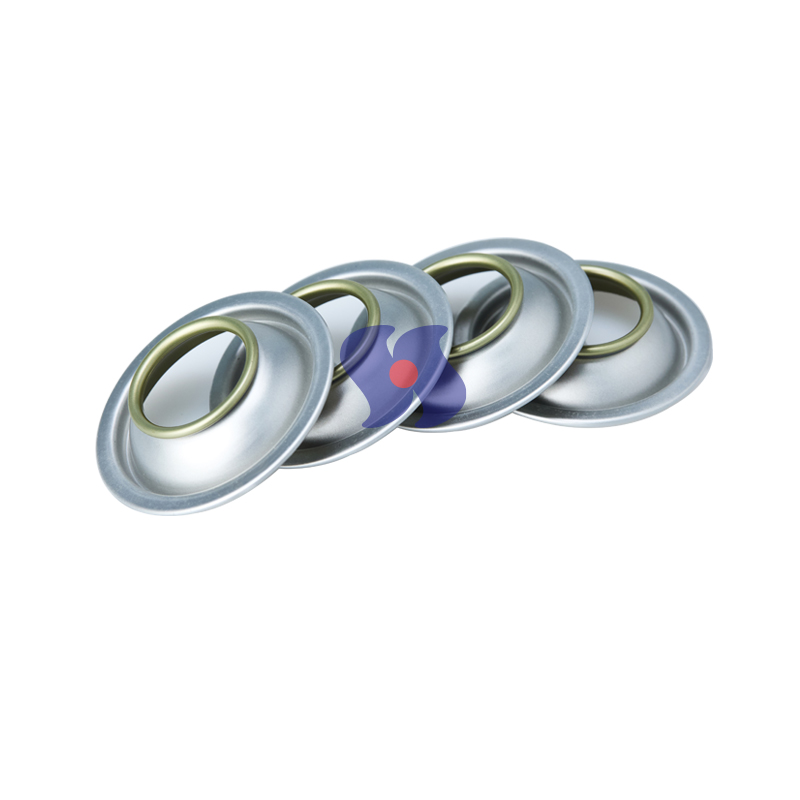

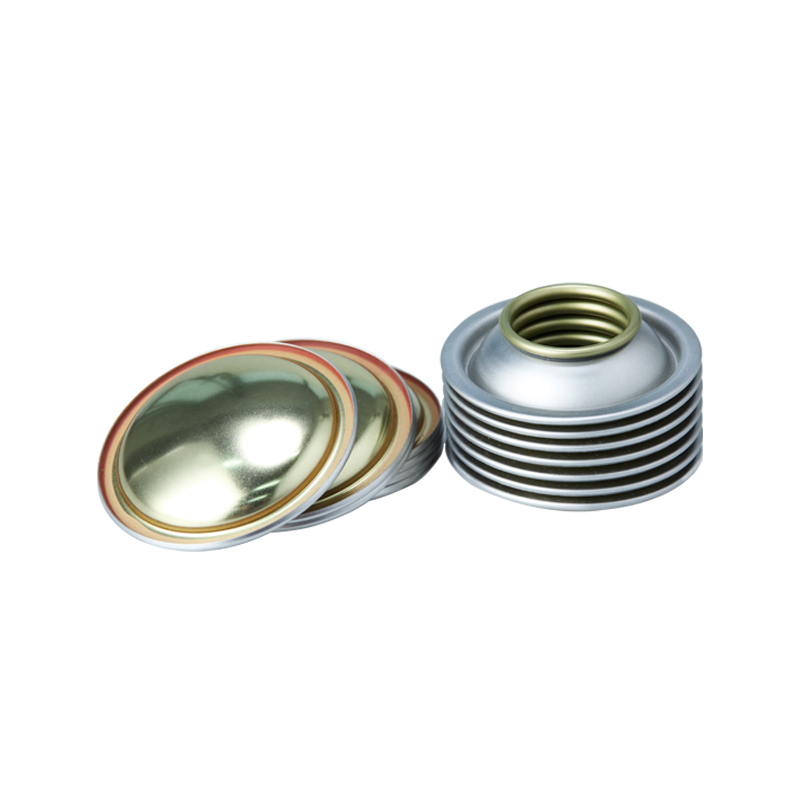

A: It is a matched cone and dome set for Φ52mm aerosol cans — the top component (cone, model 195) and the bottom component (dome, model 200).

Q: What are the base specifications?
A:

Q: Can I buy the cone and dome separately?
A: Yes — cone and dome can be supplied together as a set, or separately depending on your requirements.

Coating & Finish

Q: Can the cone and dome be internally coated?
A: Yes — internal coating is available or can be omitted, depending on your formulation and protection needs.

Q: What finishes are available?
A: Clear (varnish), white, and gold lacquer.

Q: Can the finish differ between cone and dome?
A: Finish options can be discussed — cone and dome finishes are typically matched, but specific combinations can be reviewed.

Pressure & Compatibility

Q: What pressure performance do these components support?
A: Standard: deformation ≥1.2MPa, bursting ≥1.4MPa. High pressure: deformation ≥1.8MPa, bursting ≥2.0MPa.

Q: Are these compatible with standard aerosol valves?
A: Yes — the 195 cone is designed to accept standard aerosol valves. Final valve fit should be verified against your specific components.

Q: Can I use these with my own can body?
A: Yes — cone and dome components can be supplied for customers who assemble cans themselves, subject to dimensional compatibility.

Applications

Q: What products use Φ52mm cone and dome sets?
A:

Production & Quality

Q: What is the production capacity?
A: Cone production runs on 16 fully automatic lines at 320 pcs/min. Dome production runs on 9 fully automatic lines at 900 pcs/min.

Q: How is quality controlled?
A: Components are checked for dimensional accuracy, coating coverage, finish uniformity, and pressure performance as part of the production process. All products are manufactured under ISO9001:2015 and GB13042-2008, supported by an independent laboratory and in-house mold development.

Ordering

Q: How are the components packaged for shipment?
A: Pallets or cartons, planned to match your container loading and handling requirements.

Q: What should I prepare before sending an inquiry?
A: Please prepare the following:

• Cone and dome model (195 & 200, or alternative)

• Estimated order quantity

• Internal coating preference (with or without)

• Finish preference (clear varnish / white / gold lacquer)

• Pressure version (standard or high)

• Packaging preference (pallets or cartons)

• Destination and delivery requirements

Q: Can I request samples?
A: Yes — sampling can be arranged before mass production.
